Radial MLCC

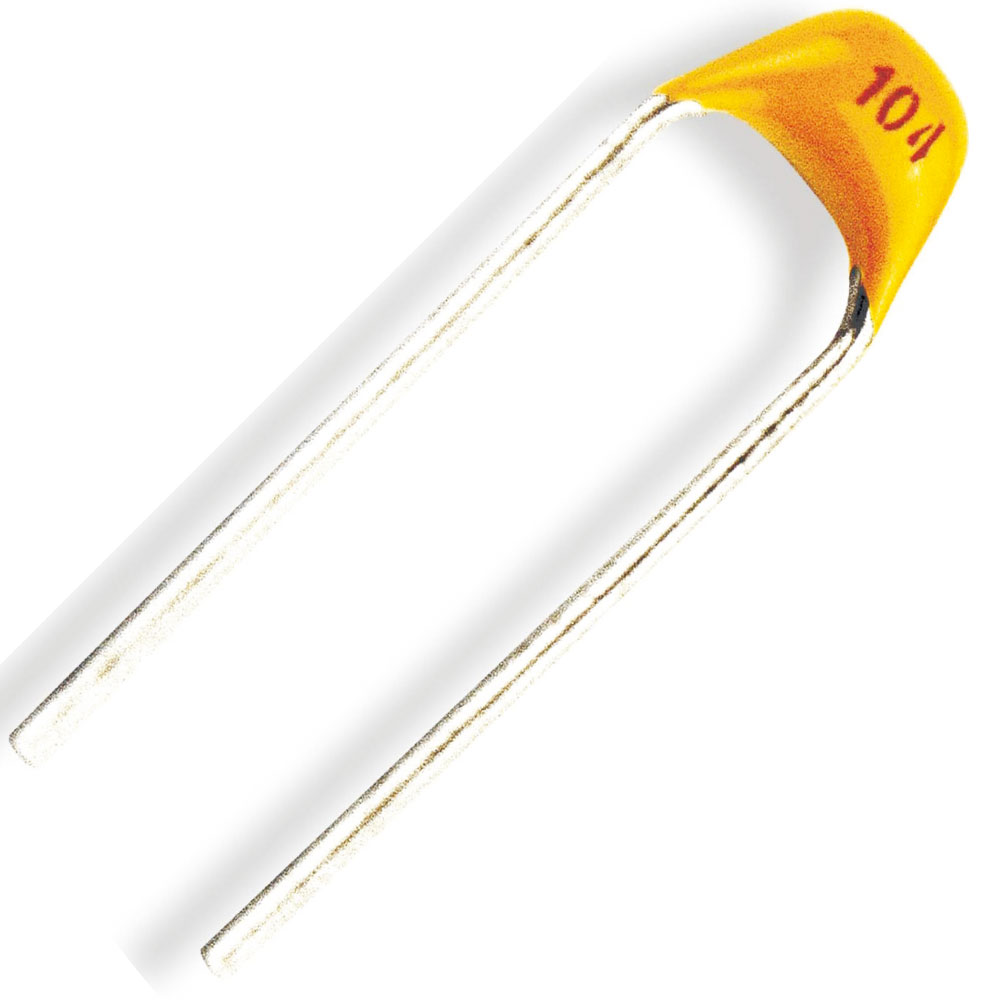

Multilayer Ceramic Capacitor (Radial)- CC (T) 4

Description Inquery

Scope：

This specification applies to CC4 (CT4) Radial leaded type Multilayer Ceramic Capacitors produced by our company for use in electronic equipment of (name of customer)

2.Standard：

《Detail specification for electronic components fixed ceramic dielectric capacitors CC4 Assessment level E》 SJ/T10569-94

《Detail specification for electronic components fixed ceramic dielectric capacitors CT4 Assessment level E》 SJ/T10569-94

3.Classify：

CC4：Material of dielectric is: NPO（N）。

CT4：Material of dielectric is:X7R（B）、Z5U、Y5V（Y）。

4.Test Conditions：

4.1：Standard Condition：If there are no specific prescribe，The test will be done according to standard condition(Temperature 15-35℃;Relative Humidity 45-75%), But If there are any problems subject to standard condition or there are some specific requirements. Please test according to 4.2

4.2：Fundamental Condition：Temperature is 20℃;Relative Humidity is 60-70%; Atmospheric pressure is 800-1060mbar。
