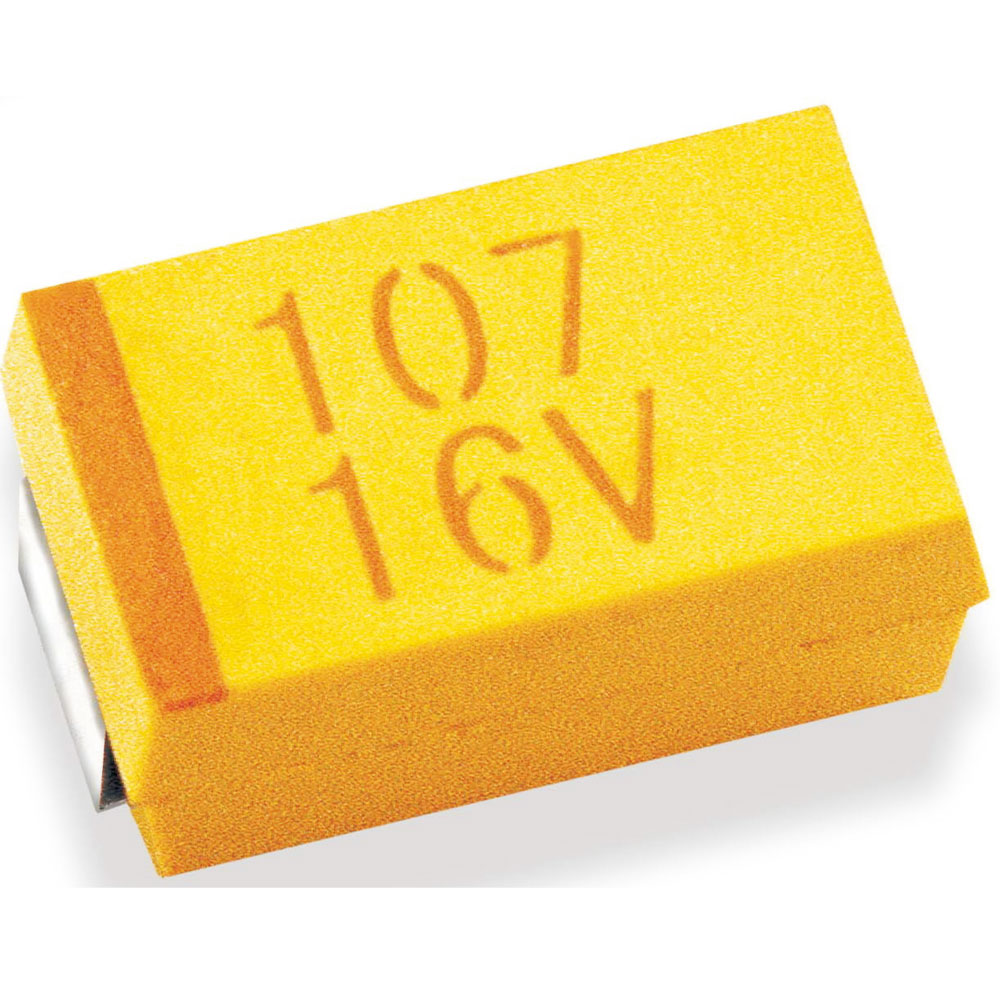

SMD Tantalum Capacitors

SMD Tantalum Capacitors-CA45

Description Inquery

SCOPE

This specification applies to TANTALUM CHIP CAPACITORS produced by our factory for use in electronic equipment.

General Specification
- Name of product: TANTALUM CHIP CAPACITOR form use in electronic equipment.
- Name of series: CA45
- Standard testing conditions:

Tests should be done at temperatures 5-35℃,humidity of 45-85%RH,and pressure of 860-1060mbar. But in the case of a discrepancy， the final decision should be made by the testing at temp of 20±2℃， humidity of 50-70%RH, and pressure of 860-1060mbar.

PERFORMANCE CHARACTERISTICS（see next page ）
DRAWING DIMENTION PRODUCT SIZE

CASE CODE	EIA SIZE	L	W	H	P	T_W
A	3216	3.2±0.2	1.6±0.2	1.6±0.2	0.8±0.3	1.2±0.1
B	3528	3.5±0.2	2.8±0.2	1.9±0.2	0.8±0.3	2.2±0.1
C	6032	6.0±0.3	3.2±0.3	2.5±0.3	1.3±0.3	2.2±0.1
D	7343	7.3±0.3	4.3±0.3	2.8±0.3	1.3±0.3	2.4±0.1
E	7343	7.3±0.3	4.3±0.3	4.0±0.3	1.3±0.3	2.4±0.1
