Solid Tantalum Capacitors

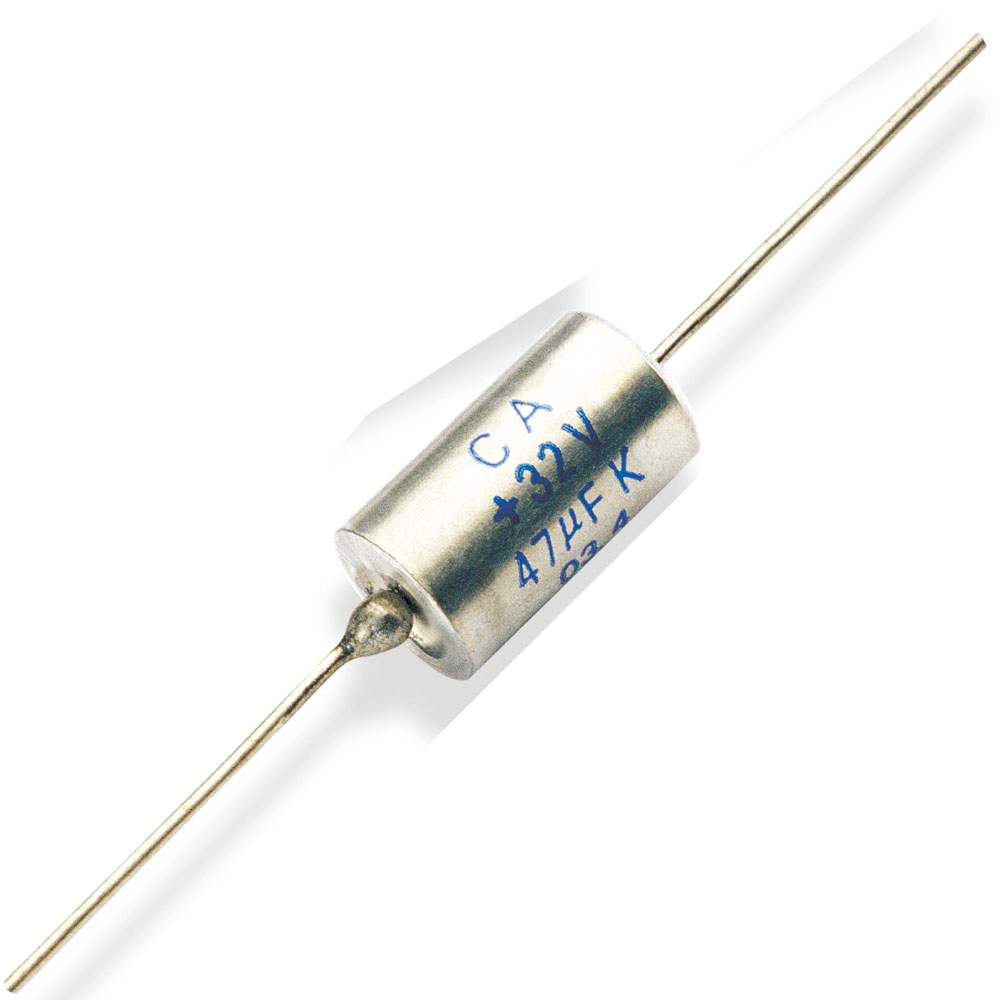

CA Hermetically Seales Axial Tantalum Capacitors

Description Inquery

SCOPE

This specification applies to CA30 DIPPED TANTALUM CAPACITORS produced by our factory for use in electronic equipment.

General Specification
1. Name of product: SOLID TANTALUM CAPACITOR form use in electronic equipment.
2. Name of series: CA
3. Standard testing conditions:

Tests should be done at temperatures 5-35℃,humidity of 45-85%RH,and pressure of 860-1060mbar. But in the case of a discrepancy， the final decision should be made by the testing at temp of 20±2℃， humidity of 50-70%RH, and pressure of 860-1060mbar.

3、Standard：

GB9583-88.

Table 1：Temperature Characteristic：

Capacitance （μF）	Change of Capacitance ΔC/C (%)			Max
	Change of Capacitance ΔC/C (%)			Dissipation Factor（tgδ）(%)				DC Leakage Current（μA）
	-55℃	+85℃	+125℃	-55℃	+20℃	+85℃	+125℃	+20℃	+85℃	+125℃
≤1.0	±8	±8	±12	6	4	6	6	I₀=0.01 C_RU_ROr 1μA (Whichever is greater)	10 I₀	12.5 I₀ (1)
1.5-68				8	6	8	8
100-330				12	10	12	12
470				15	12	15	15

Annotate：（1）Measuring By De-rating Voltage
